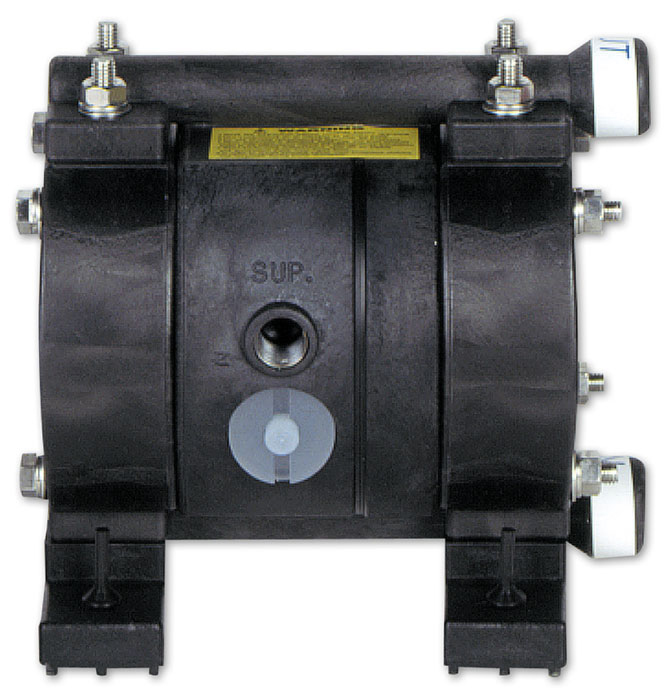

Yamada NDP-5 Series

Intake & Discharge Connections:

1/4" Female NPT

Air Inlet:

1/4" Female NPT (includes ball valve)

Air Exhaust:

3/8" Female NPT (includes silencer)

Air Supply Pressure (All Models) :

20 to 100 PSI (1.4 to 7 kgf/cm²)

Discharge Volume Per Cycle:

0.0085 gallons (35 cc)

Maximum Cycles Per Minute:

All diaphragms: 400

Maximum Size Solid:

N/A

Maximum Dry Suction Lift:

5-feet

Air Motor:

Standard: Ryton® Air Motor

Optional Coating:

N/A

Notes:

Hytrel®-fitted pumps include Hytrel® check balls & Buna N wetted o‑rings. Santoprene®-fitted pumps include Santoprene® check balls and EPDM wetted o‑rings.
